Expanded Metal Mesh

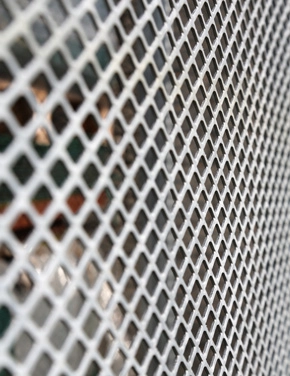

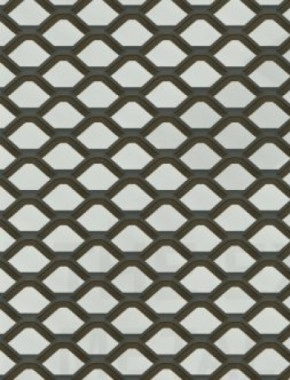

Galvanised Expanded MeshA major advantage of expanded mesh is that it is formed from a single piece of material so the process is not wasteful and therefore cost effective. The material is cut and stretched while still leaving it attached at the knuckle. This allows it to retain its shape when cut and cannot separate or fray. Often cutting to shape is the only fabrication needed.

Because of its jointless continuity it is a highly efficient conductor of electricity, magnetic flux and heat. It has excellent corrosion resistance when suitably coated, and the uncut knuckles support weight and withstand stress better than jointed welds or woven materials.

Expanded mesh can be supplied in a variety of finishes, thickness, raised or flattened. Flattened is smoother and does not indent soft materials if this is a consideration but is not as strong as the more robust raised mesh. Powder coating in your choice of colour will enhance its aesthetic appearance and add to its corrosion resistance as would plastic coating.

We can supply in framed panels made to customers specific requirements






Product Filter

Ex VAT Inc VAT
Metric Imperial
List Grid

Size

Thickness

Finish

LW

SW

Strand width

Raised flattened



First 1 2 Last

Name
Raised
flattened
LW
SW
Strand width
Thickness
Quantity

Price

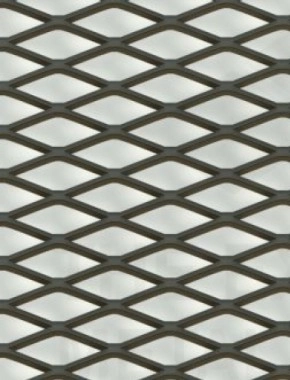

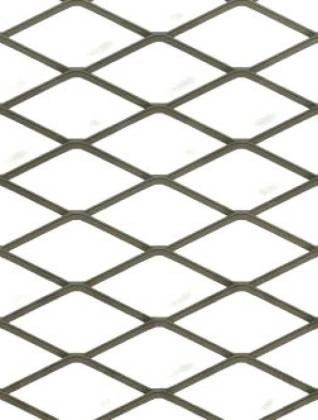

Securilath H, Mild steel 2440x1220
Name: Securilath H, Mild steel 2440x1220
Raised
flattened:
Flattened
LW: 42.9 mm1.69 (in)
SW: 14.2 mm0.56 (in)
Strand width: 4.6 mm
Thickness: 2.7 mm0.11 (in)

Update
Prices

Price: £58.54
£48.78
(per sheet)

product star product star product star product star product star
  • We do not export this product

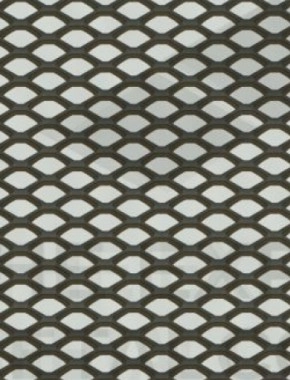

  • Securilath M, Mild steel 2440x1220
    Name: Securilath M, Mild steel 2440x1220
    Raised
    flattened:
    Flattened
    LW: 42.9 mm1.69 (in)
    SW: 14.2 mm0.56 (in)
    Strand width: 4.6 mm
    Thickness: 1.2 mm0.05 (in)

    Update
    Prices

    Price: £35.40
    £29.50
    (per sheet)

    product star product star product star product star product star
  • We do not export this product

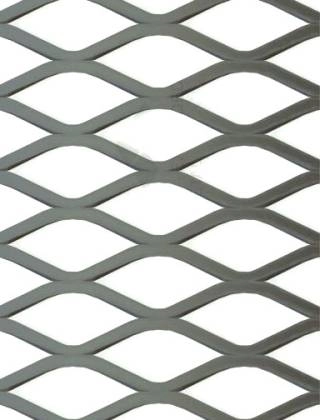

  • FMM 204F, Mild steel 2440x1220
    Name: FMM 204F, Mild steel 2440x1220
    Raised
    flattened:
    Flattened
    LW: 39.1 mm1.54 (in)
    SW: 18.3 mm0.72 (in)
    Strand width: 4.7 mm
    Thickness: 2.7 mm0.11 (in)

    Update
    Prices

    Price: £57.74
    £48.12
    (per sheet)

    product star product star product star product star product star
  • We do not export this product

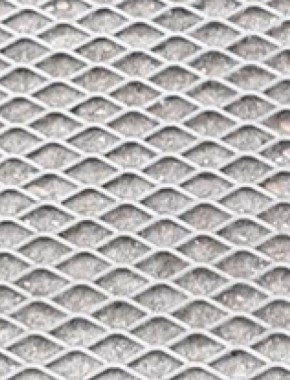

  • 08-64FG, Galvanised1250x1250
    Name: 08-64FG, Galvanised1250x1250
    Raised
    flattened:
    Flattened
    LW: 5.00 mm0.24 (in)
    SW: 3.45 mm0.13 (in)
    Strand width: 1.3 mm
    Thickness: 0.7 mm0.03 (in)

    Update
    Prices

    Price: £50.40
    £42.00
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • FMM 126R, Mild steel 2440x1220
    Name: FMM 126R, Mild steel 2440x1220
    Raised
    flattened:
    Raised
    LW: 30.5 mm1.2 (in)
    SW: 11.7 mm0.46 (in)
    Strand width: 2.4 mm
    Thickness: 1.2 mm0.05 (in)

    Update
    Prices

    Price: £45.72
    £38.10
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • FMM 208R, Mild steel 2440x1220
    Name: FMM 208R, Mild steel 2440x1220
    Raised
    flattened:
    Raised
    LW: 50.8 mm2 (in)
    SW: 22.5 mm0.89 (in)
    Strand width: 3.9 mm
    Thickness: 3 mm0.12 (in)

    Update
    Prices

    Price: £111.38
    £92.82
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • 06-20 R, Mild steel 1220x1220
    Name: 06-20 R, Mild steel 1220x1220
    Raised
    flattened:
    Raised
    LW: 5.84 mm0.23 (in)
    SW: 3.5 mm0.14 (in)
    Strand width: 0.79 mm
    Thickness: 0.6 mm0.02 (in)

    Update
    Prices

    Price: £36.67
    £30.56
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • 19-98 R, Mild steel 2440x1220
    Name: 19-98 R, Mild steel 2440x1220
    Raised
    flattened:
    Raised
    LW: 19.05 mm0.75 (in)
    SW: 7.43 mm0.29 (in)
    Strand width: 1.7 mm
    Thickness: 0.9 mm0.04 (in)

    Update
    Prices

    Price: £73.92
    £61.60
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • 30-95 R, Mild steel 2440x1220
    Name: 30-95 R, Mild steel 2440x1220
    Raised
    flattened:
    Raised
    LW: 30.48 mm1.2 (in)
    SW: 11.72 mm0.46 (in)
    Strand width: 1.98 mm
    Thickness: 1.6 mm0.06 (in)

    Update
    Prices

    Price: £74.54
    £62.12
    (per sheet)

    product star product star product star product star product star
  • We do not export this product
  • 50-89 R, Mild steel 2440x1220
    Name: 50-89 R, Mild steel 2440x1220
    Raised
    flattened:
    Raised
    LW: 50.8 mm2 (in)
    SW: 22.58 mm0.89 (in)
    Strand width: 3.12 mm
    Thickness: 3 mm0.12 (in)

    Update
    Prices

    Price: £79.90
    £66.58
    (per sheet)

    product star product star product star product star product star
  • We do not export this product

  • First 1 2 Last
    Flattened Mesh Raised Mesh

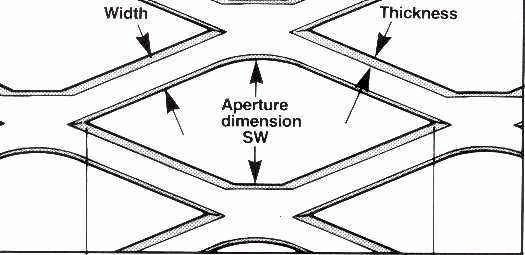

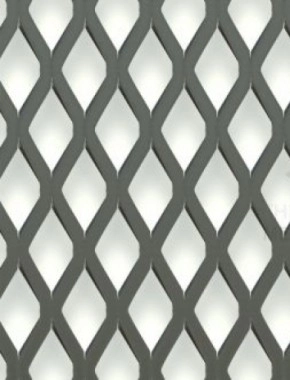

    Flattened expanded

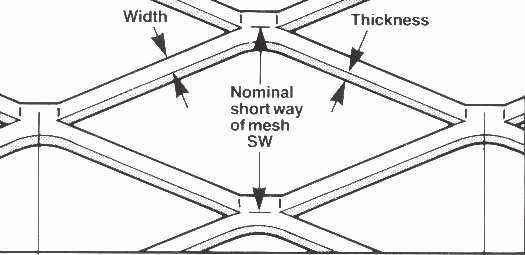

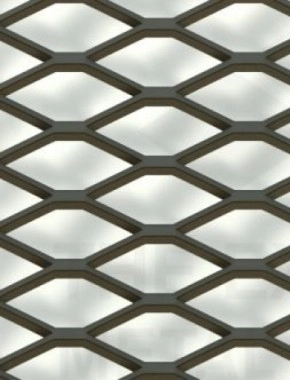

    Raised expanded

    Flattened expanded mesh is more suited to locations with foot traffic, although the edges can still be sharp it won't snag clothes.

    Flattened mesh takes a powder coating better than raised and gives a more proffesional look.

    Raised mesh is generally stronger than flattened mesh as the knuckle gives the mesh extra strength. Its more suited to security applications in area of low footfall such as security fencing, where snagging is not an issue.

    Expanded raised mesh

    Pattern Number

    L.W.M (mm)

    S.W.M. (mm) Strand Width (mm) Strand Gauge (mm) % Free Area Approx. Kg/M2
    2L035 018 6.05 3.38 0.8 0.5 50 2.1
    4L035 018 10.24 5.84 0.8 0.5 75 1.2
    4L046 036 10.24 5.84 1.2 0.9 65 3.2
    5L046 036 14.27 5.84 1.2 0.9 60 3.2
    7L067 036 19.05 7.42 1.2 0.9 60 3.4
    FMM 020R 5.80 3.50 0.8 0.6 44 2.1
    FMM 078R 19.00 7.40 1.7 1.0 55 3.4
    FMM 124R 30.50 11.70 2.4 1.6 62 4.9
    FMM 126R 30.50 11.70 2.4 1.2 61 3.8
    FMM 157R 38.00 16.50 2.2 1.6 76 3.4
    FMM 201R 50.80 22.50 2.5 2.5 77 4.4
    FMM 203R 50.80 22.50 3.0 1.6 80 3.4
    FMM 208R 50.80 22.50 3.9 3.0 69 8.1
    FMM 209R 50.80 22.50 3.1 3.0 71 6.5
    FMM302R 76.20 33.90 3.5 3.0 78 4.9
    FMM 336R 85.70 40.60 3.2 3.0 84 3.7
    FMM 405R 101.60 50.80 5.0 3.0 82 4.7
    FMM 407R 101.60 50.80 3.4 3.0 85 3.1
    FMM 459R 114.30 39.30 4.6 3.0 82 5.4
    FMM 008R 200.0 75.0 6.3 3.0 - 3.6

    Expanded flattened mesh

    Pattern Number

    L.W.M

    S.W.M Strand Width Strand Gauge % Free Area Approx. Kg/M2
    2F035 018 6.05 3.38 0.5 0.8 50 2.1
    4F035 018 10.24 5.84 0.5 0.8 75 1.2
    4F046 036 10.24 5.84 0.9 1.2 65 3.2
    FMM 026F 3.80 2.10 0.8 0.6 46 2.1
    FMM 074F 14.20 4.80 1.8 .9 52 3.3
    FMM 120F 24.40 7.10 2.4 1.1 57 3.4
    FMM 129F 23.10 5.80 3.2 1.5 43 6.3
    FMM 154F 32.70 10.90 3.2 1.5 59 4.3
    FMM 155F 33.50 12.40 2.3 1.1 71 2.5
    FMM 203F 42.90 14.20 4.6 2.7 58 8.6
    FMM 204F 39.10 18.30 4.7 2.7 60 7.6
    FMM 207F 43.20 17.80 3.2 1.5 69 3.2
    FMM 334F 69.80 37.10 5.5 2.1 75 3.9
